Construction Documents, like measured drawings, begin with the team visiting the site and taking measurements of the space. The project is then converted to an electronic scaled drawing. Please visit measured drawings for more information on what is included in a standard drawing.

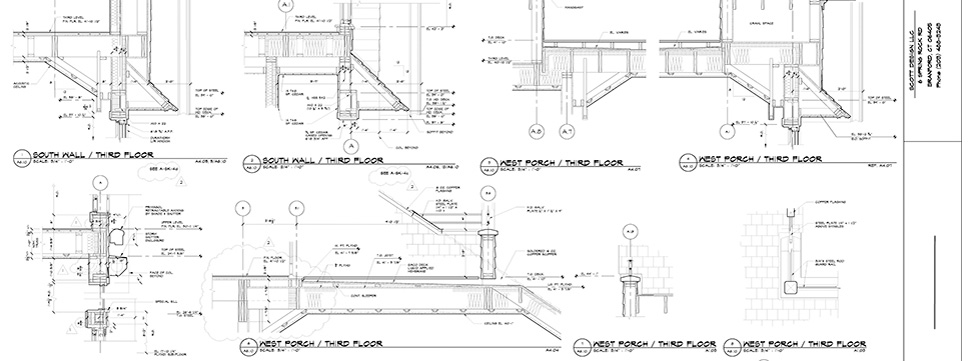

Construction documents provide comprehensive building specifications to guide the contractor through the construction phase. These documents include a detailed floorplan, elevations, sections and details of the structure. The plans are used for the bidding and building process. Accuracy is imperative for a seamless transition from the planning stage through to completion of the project.
